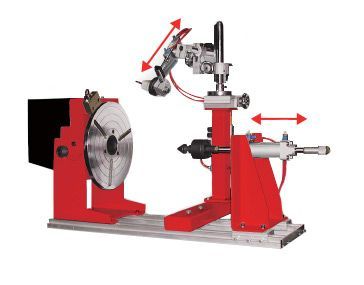

Welding Lathes


Ideal for manufacturers doing batch production welding.

These systems give an affordable solution where volume of components is not sufficient to justify purchase of a welding robot.

This modular system is easily adaptable for different sized components, for more details contact us for the options.

With standard and PLC control units available the route to automation has never been easier.

All Major credit cards accepted

Download Specification Sheet


Contact us on 01384 232 121 to discuss this product

or fill in the form below


Specification / No. BP1CC28
Power V1: AC 110V/60Hz/4A/1Ø
V2: AC 230V/50Hz/3A/1Ø
Table axis centre hole I.D 55mm
Table Dia O.D. 340mm
Table angle 0 – 90o
Welding current 300A / 100%
Table speed 0.6 – 6 rpm
Rotate load 200 KG
Rotate torque 65 Kg-cm.
Rotate direction cw/ccw
OverLap timer(Fixing point) 0 – 99.9 sec(display unit : 0.1 sec)
Timer (Fixing point) 0 – 999 sec(display unit :1 sec)
Lap well timer (Fixing point) 0 – 99.9 sec(display unit : 0.1 sec)
Start / Crater arc timer 0 – 99.9 sec(display unit : 0.1 sec)
Arc way of the welder Standard(2 cycle) / Cater(4 cycle)
Line welder 2st
Stop the brake Magnetism brake
H.F. Protect 92%
Start the device Pedal switch (Line 2M)
Size L : 288mm
W : 403mm
H : 376mm
N.W. / G.W. 63Kg / 86Kg

Enquire about New Welding Lathes


All machines come with

  • Test Certificates
  • Manuals and Training Guides (where available)
  • Inspection prior to dispatch
  • Support and Aftercare
