Bode 6 x 4.5 Heavy Duty Column and Boom
Speciification

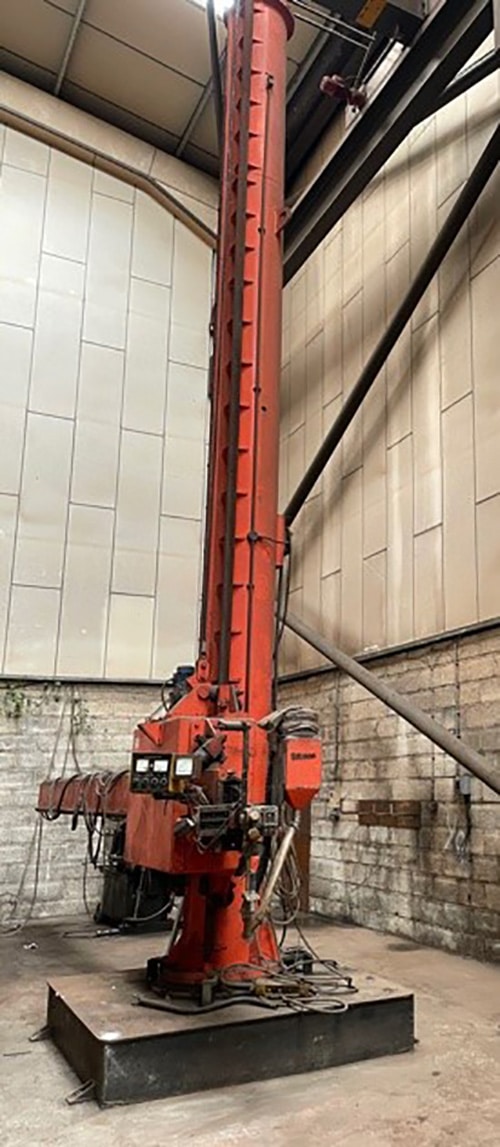

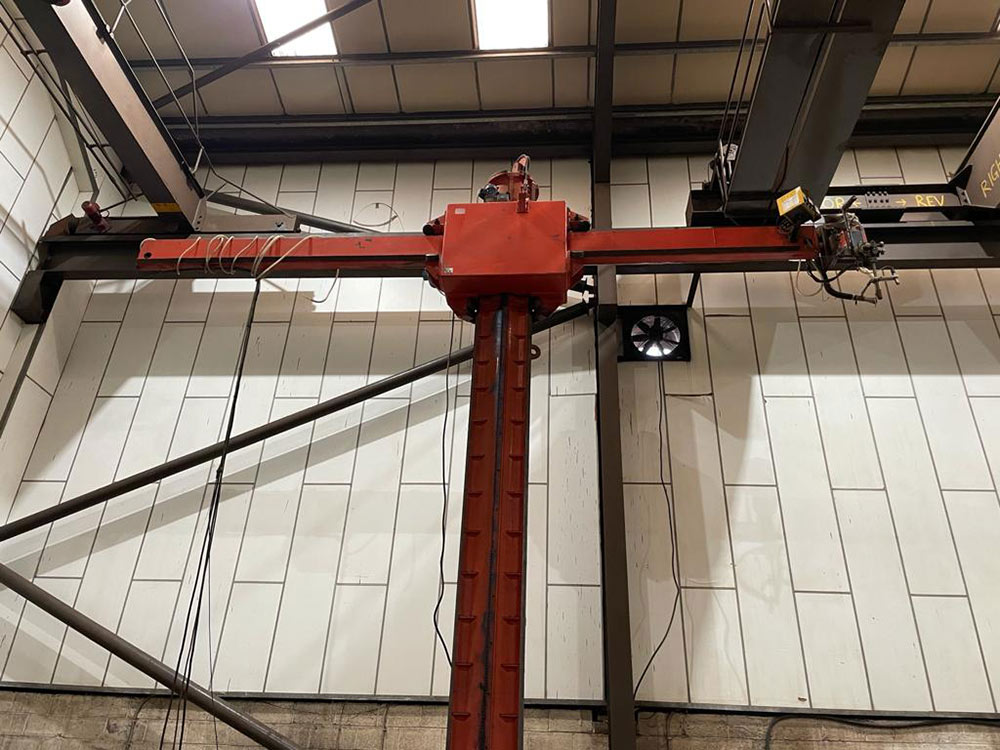

Bode 6 x 4.5 Heavy Duty Column and Boom
Model – RC 6 x 4.5
Maximum height under the boom – 6000mm
Minimum height under the boom – 1000mm
Overall boom arm length – 6400mm
Horizontal boom arm travel – 4500mm
Boom arm dimension –
Base dimension – 1800mm x 1800mm x 310mm
Overall Height – 8040mm
Machine weight – 6200 Kgs
Enquire about Bode 6 x 4.5 Heavy Duty Column and Boom
All machines come with
- Test Certificates
- Manuals and Training Guides (where available)
- Inspection prior to dispatch
- Support and Aftercare
Call us on 01384 232121
We have 100's of new and used machines in stock available for Hire and Sale
