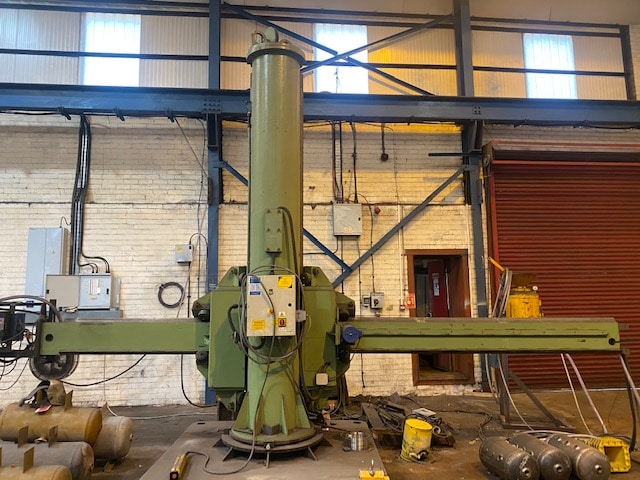

Bode 3 x 3.5 Heavy Duty Column and Boom
Specification
Bode 3 x 3.5 Heavy Duty Column and Boom

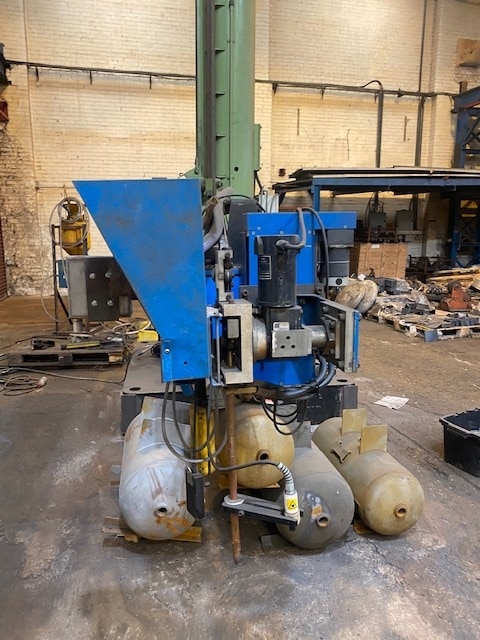

Complete with Miller Submerged Arc Head and Power Source
Power X and Y slides and Flux Recovery
Manufacturer – Bode
Model – RC
Maximum height under the boom – 3000mm
Minimum height under the boom – 1000mm
Overall boom arm length – 5660mm
Horizontal boom arm travel – 3600mm
Boom arm dimension – 390mm x 220mm
Base dimension – 1800mm
Overall Height – 4400mm
Comments

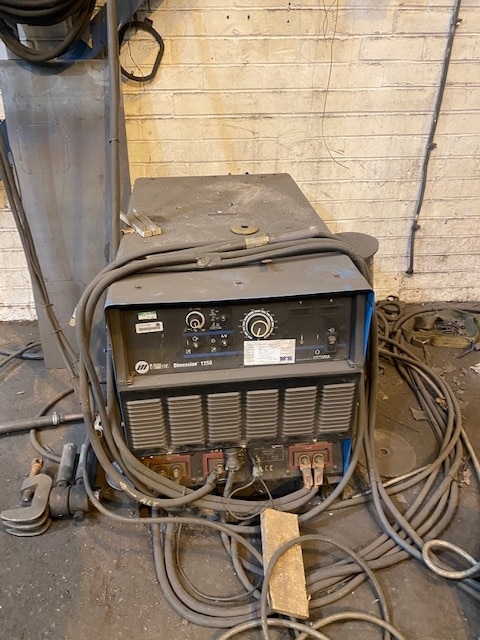

Miller Deltaweld 1250 Power Source and Head

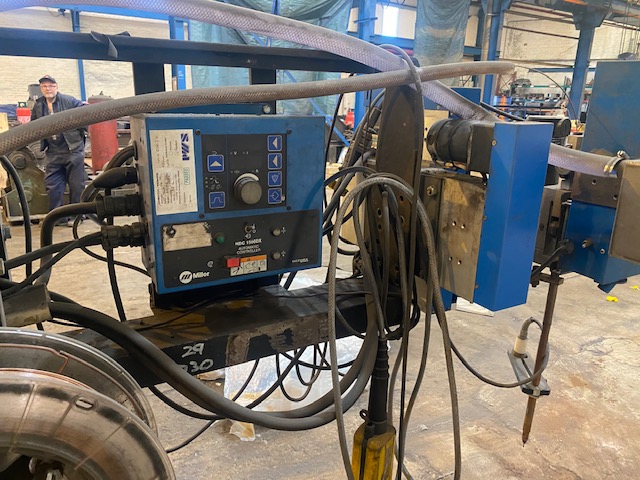

HDC 1500 DX Controller
Power X and Y Slides
Download Specification Sheet
Enquire about Used Bode 3 x 3.5 Heavy Duty Column and Boom
All machines come with
- Test Certificates
- Manuals and Training Guides (where available)
- Inspection prior to dispatch
- Support and Aftercare
Call us on 01384 232121
We have 100's of new and used machines in stock available for Hire and Sale
